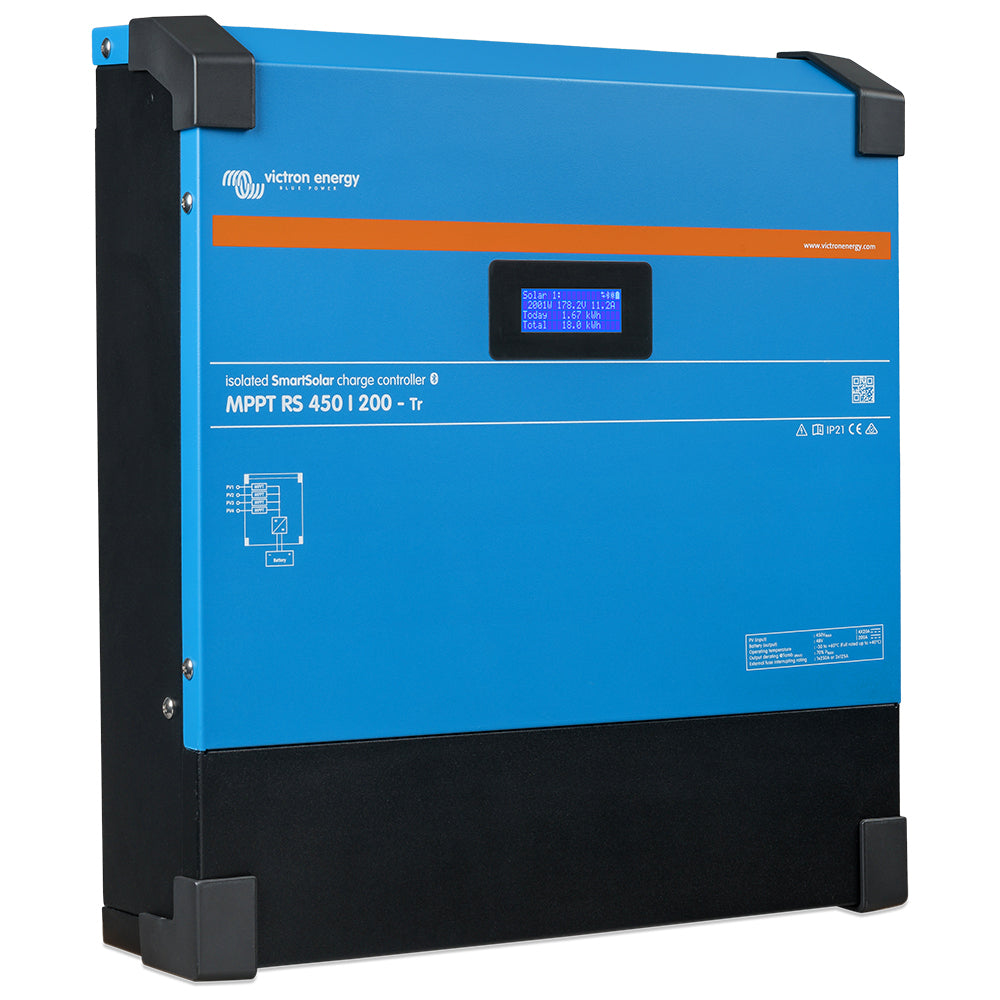

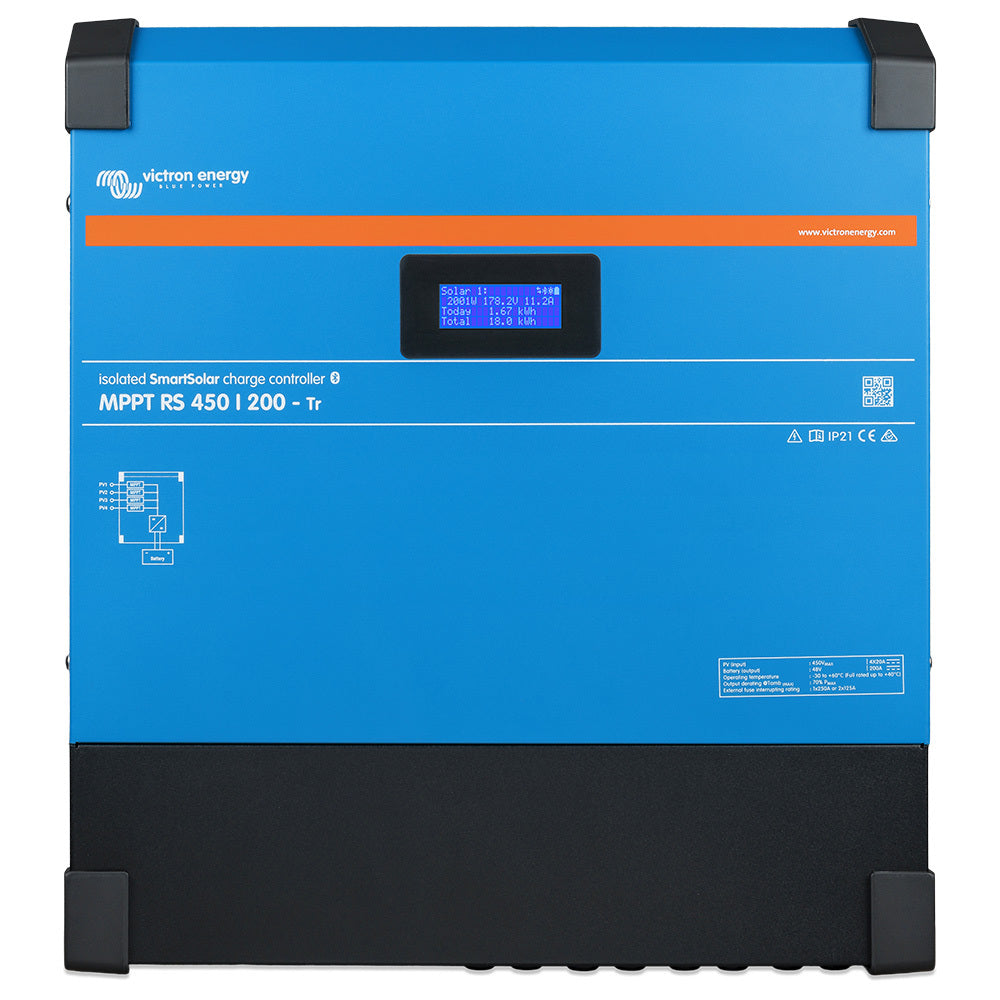

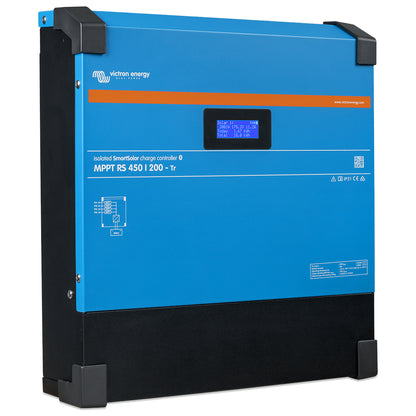

Victron SmartSolar MPPT RS 450/200-Tr Bluetooth Solar Charge Controller

Victron SmartSolar MPPT RS 450/200-Tr Bluetooth Solar Charge Controller

Regular price $3,295.00
Regular price Sale price $3,295.00
Sale Sold out
Tax included. Shipping calculated at checkout.

The Victron SmartSolar MPPT RS 450/200-Tr Solar Charge Controller offers an unbeatable solution for your large solar systems. Boasting an independent tracking input, full connectivity, isolated PV connections, and active cooling, this versatile and powerful unit is perfect for large off-grid systems and grid connected battery systems.

With up to 11.52KW of operating solar voltage input and a sleek design, you can trust the SmartSolar to deliver superior battery charging performance and reliable operation for years to come.

The MPPT RS SmartSolar is a 48V Solar charge controller with up to 450VDC PV input and 200A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required.

  • With multiple MPPT trackers, you can optimise your solar panel design for maximum performance for your specific location.

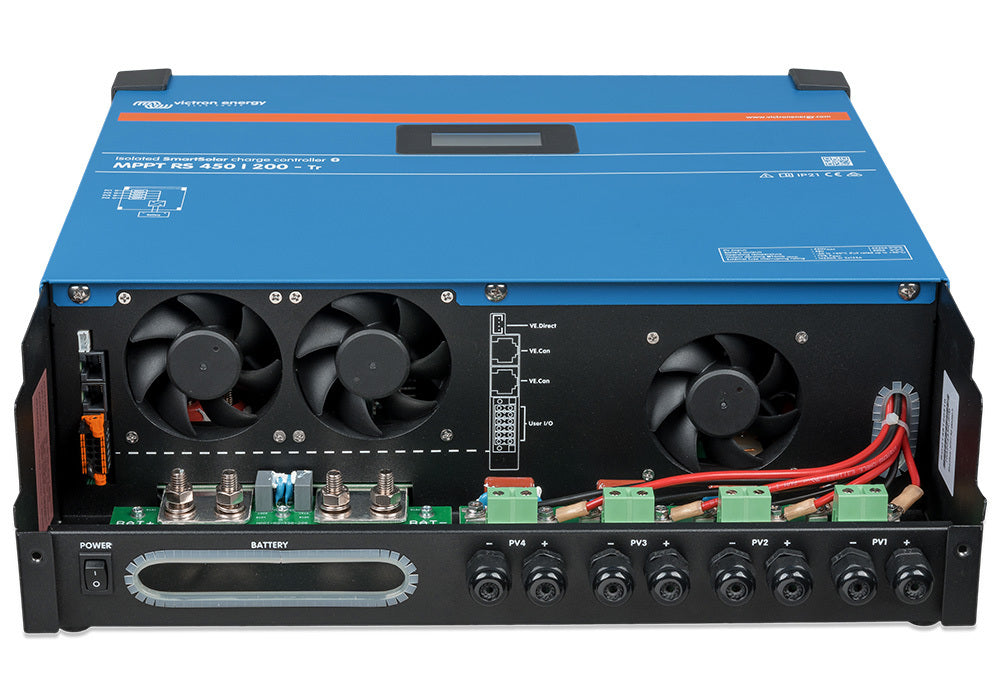

  • Full galvanic isolation between PV and battery connections provide additional overall system safety.
  • 80 – 450 VDC PV operating range, with a 120VDC PV startup voltage
  • Thanks to high frequency technology and a new design this powerful charger weighs only 13 kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.
  • The display reads battery, and solar charge controller parameters. The parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.
  • The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.
  • The SmartSolar RS charge controller is equipped with VE.Can bus ports. This allows for communication with additional SmartSolar RS & VE.Can MPPT units. The additional units are simply “daisy chained” to each other with an RJ45 cable. When connected to each other, all individual charge controllers, will synchronise their charge stages. They can also send their data, via the same cable, for monitoring to a GX device (such as the Cerbo GX) for system monitoring, data logging, and remote firmware updates.
  • Programmable Relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron smallBMS, and other BMS with allow-to-charge signal.
