Victron EV Charging Station

Experience fast and efficient EV charging with the Victron EV Charging Station. With both three phase and single-phase capabilities, it can deliver up to 22kW AC in three phase mode or 7.3kW in single phase mode. Easily monitor and control your charging with the 4.3-inch LCD touch screen. Plus, the customizable RGB Light Ring provides convenient visual cues from a distance. Get yours now and upgrade your EV charging experience!

• The EV Charging Station has three phase and single-phase capabilities. It delivers maximum 22kW AC in three phase mode or 7.3kW in single phase  mode.
• Wi-Fi: 802.11 b/g/n for configuration and monitoring.
  The internal Wi-Fi module can be configured in Access Point mode or Station mode for both the initial setup and monitoring.

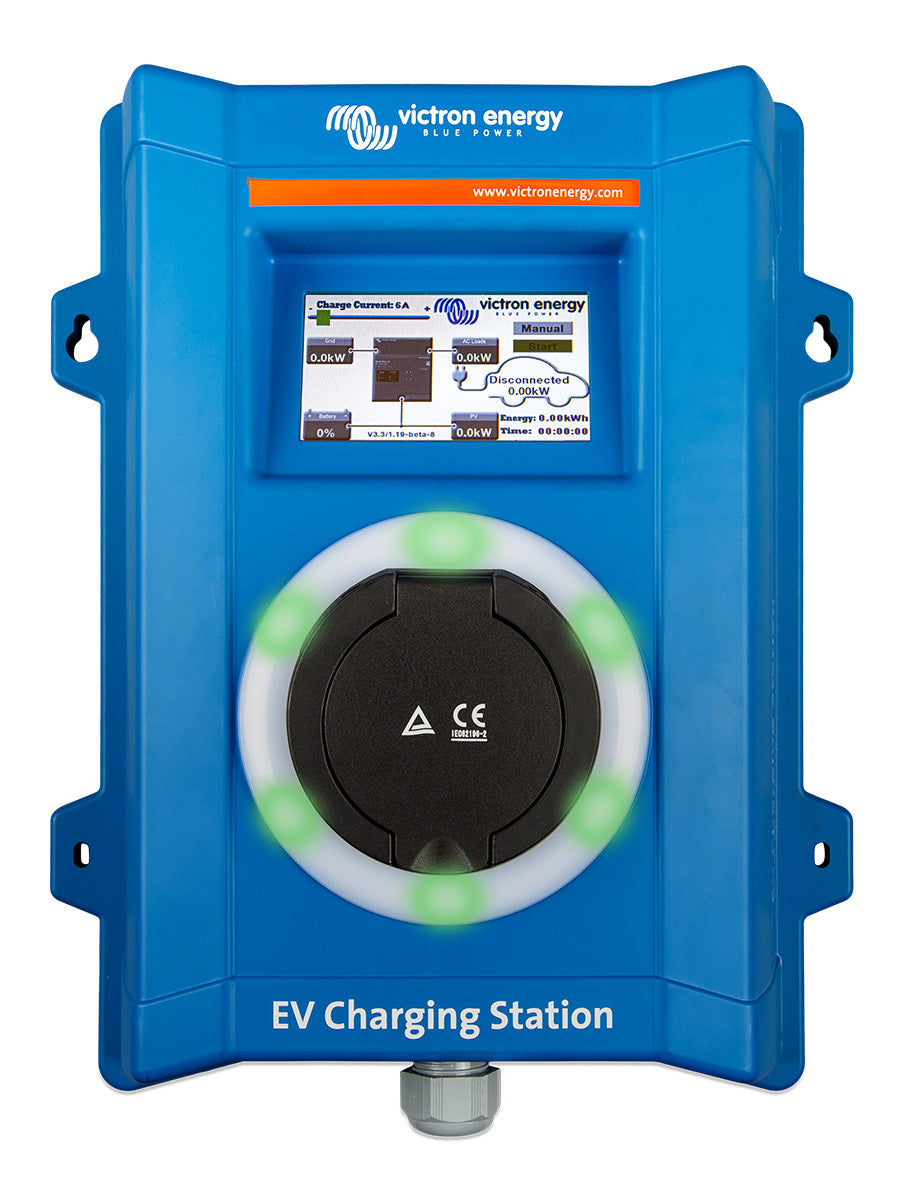

• It incorporates a 4.3-inch LCD Touch Screen for monitoring and control.
• Fully programmable RGB Light Ring around charging port, to quickly determine the device state. It can be programmed from the web interface to display different light effects based on the current state (disconnected, charging, charged etc.). The objective is to help the user see the current state from a distance.
• Manual mode allows configurable output current between 6-32A. The charging power is controlled in two ways: by using the slider on the LCD touch screen or by using its web page. It allows to manually start or stop the charging process when a vehicle is connected to the charging station.
• It detects when excess power is available and uses only that power to charge the vehicle.
• The EV Charging Station can be configured and monitored from the GX screen devices and Remote Console.
• Several options are available in the VRM Portal: real-time reports, custom reports for configurable time periods, and advanced functions such as remote firmware updates.
