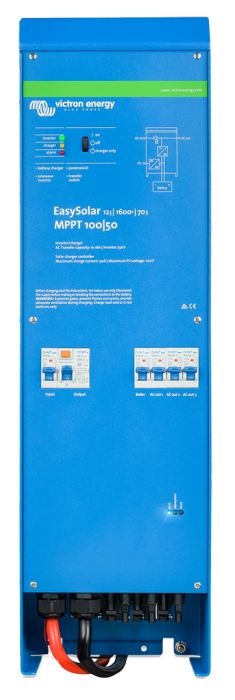

Victron Easysolar 12V 1600VA MPPT 100-50
Victron Easysolar 12V 1600VA MPPT 100-50
The EasySolar combines an MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure. The product is easy to install, with a minimum of wiring.
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers. One 16A output is controlled by the AC input: it will switch on only when AC is available.
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
