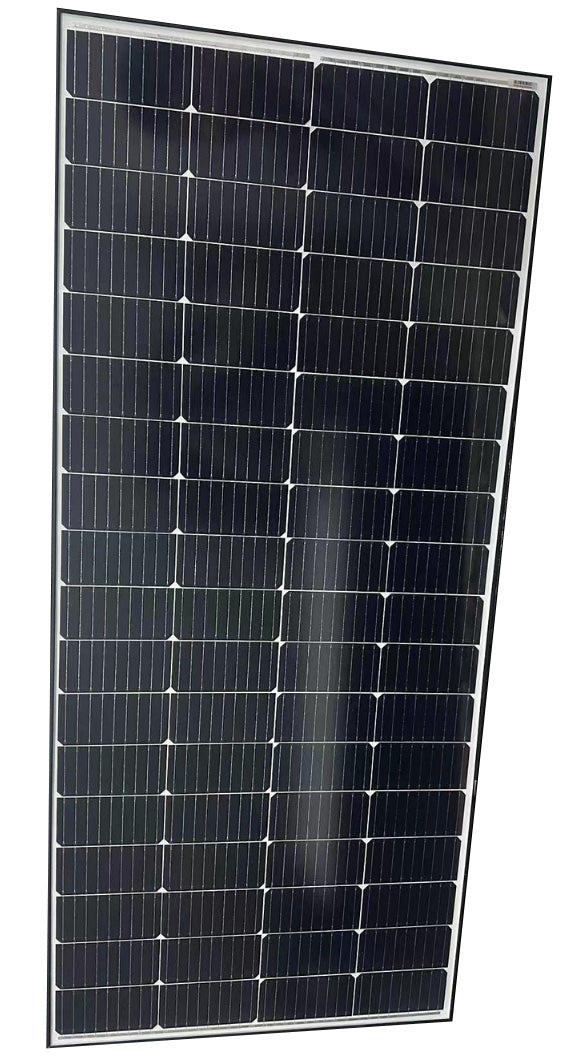

Exotronic 225W Fixed Solar Panel

Using 23% efficient M6 monocrystalline passivated emitter rear contact (mono-PERC) cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance. This Shade Tolerant model has two individual strings within the panel; when one side is shaded it have negligible impact the secondary string.

PERC cells provide better performance in low light applications compared to traditional monocrystalline silicone designs as some of the light that passes through the cell is bounced back and converted into electricity.

The 9-wire busbar decreases the resistance of the module and carries current evenly over the whole surface of the cells to ensure that all there are minimal power losses within the module and significantly reduces uneven cell heating and hot spots.

The Exotronic range of panels has been designed so that all panels have closely matching votlages, therefore all sizes can be wired in parallel.

The anodised aluminium frame is further protected by a black protective coating and is only 25mm thick to assist a low-profile design and reduce the weight of the module while still giving good rigidity to protect the module from vibrational and torsional stresses. The tempered glass provides high resistance to impact damage. Low-iron high transmissivity glass is used to provide excellent low light performance.

• Power - 225W
• Dimensions - 1570x700x25
• Weight - 11.2kg

• Vmp (V)- 20.52
• Imp (A) - 10.96
• Voc (V) - 24.15
• Isc (A) - 12.18
• Salt mist  and ammonia resistant
• Wind load resistant - 2400 Pascal
• Snow load resistant - 5400 Pascal
• Operating Temperature -  -40 - +85C
• Maximum System Voltage - 1000VDC
• Maximum Fuse Rated Current - 15A
• Junction Box - IP65/IP67

• 3.2mm tempered glass
• Connectors - MC4 Compatible
• Warranty - 10 years fixed installation / 5 years mobile & marine
