Exotronic 200W Folding Solar Panel with Victron Smart Controller

Exotronic 200W Folding Solar Panel with Victron Smart Controller

Regular price $320.00
Regular price $450.00 Sale price $320.00
Sale Sold out
Tax included. Shipping calculated at checkout.

This kit includes a Victron 75/15 Smart Solar Controller.

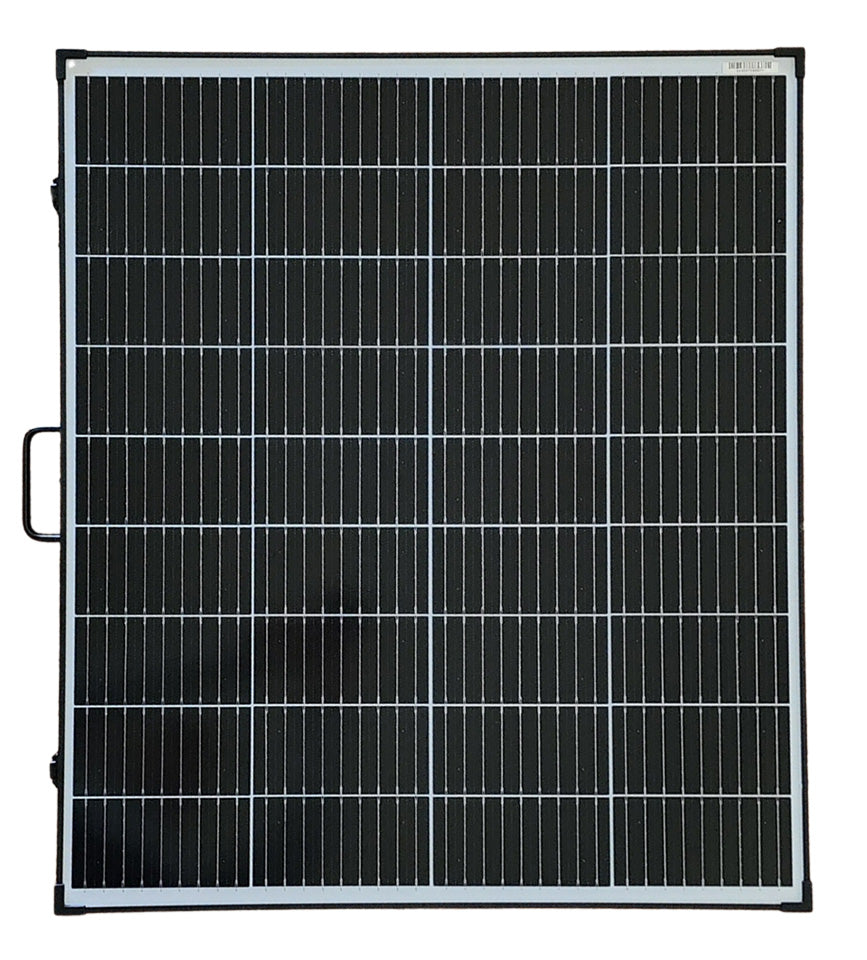

When camping, parking under shade, or you need access to free power to charge your battery, Exotronic has you covered with a strong but small form-factor foldable glass solar panel solution. The 200W briefcase is made up from two 100W solar modules using Trina half-cut 23% PERC monocrystalline solar cells with 9-wire busbars to maximise module efficiency.

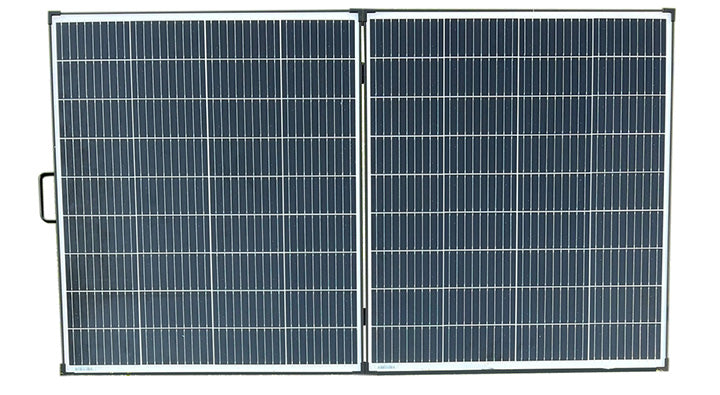

Weighing only 11.2kg, this panel can be manoeuvred with minimal effort. Each folded section is wired independently, so if one side is shaded the other side will still operate.

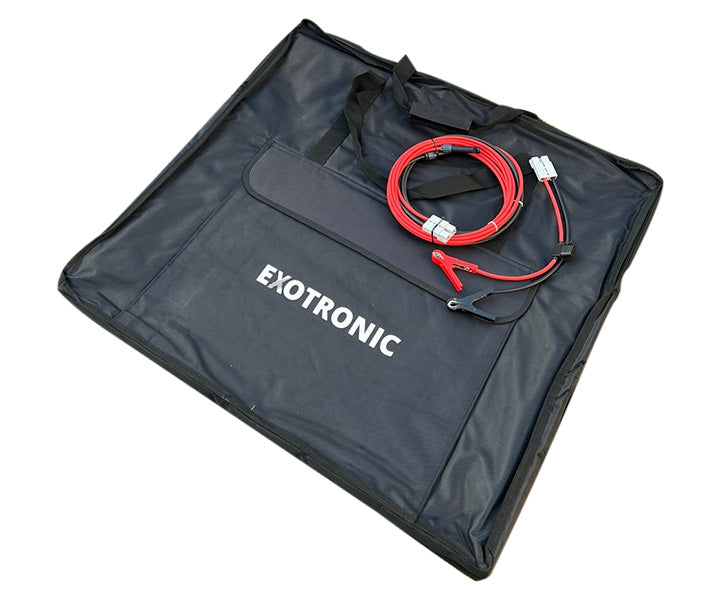

The included padded canvas bag helps protect the solar module from scratches when stored away and includes a carry handle and pocket to store the cables and controller when not in use.

Using 23% efficient Trina monocrystalline passivated emitter rear contact (mono-PERC) square cut cells and the latest 9-wire bus-bar low-loss design, these panels achieve a high efficiency with a positive power tolerance.

Specifications

  • Model - Exo-FP-200
  • Power (W) - 200
  • No. of Cells - 2x 36 (4x9)
  • Folded Dimensions (mm) - 775x675x40
  • Unfolded Dimensions (mm) - 775x1350x19
  • Weight (kg) - 11.2
  • Vmp (V) - 19.8
  • Imp (A) - 10.12
  • Voc (V) - 24.1
  • Isc (A) - 10.5
  • Module Efficiency (%) 19.3
  • Temperature Ratings NMOT 41C +/-3C
  • Temperature Coefficient of Pmax -0.37%/C
  • Temperature Coefficient of Voc -0.29%/C
  • Temperature Coefficient of Voc 0.05%/C
  • Operating Temperature -40 - +85C
  • Maximum System Voltage 1000VDC
  • Maximum Fuse Rated Current 15A
  • Front 3.2mm Tempered Glass
  • Frame Black Anodized Aluminium Alloy
  • Junction Box IP65/IP67
  • 5m cable with MC4 to Anderson connectors
