BSLBATT 48V 200Ah 10.24kWh LiFePO4 Wall-Mount Battery
BSLBATT 48V 200Ah 10.24kWh LiFePO4 Wall-Mount Battery
SKU:Battery-BSL-48V-200AH-POWERWALL
In stock
Couldn't load pickup availability
- Australia-wide delivery
- Perth pickup & local support
- Warranty-backed products
Product details+
| Brand | BSL Battery |
|---|---|
| Product type | Batteries |
| SKU | Battery-BSL-48V-200AH-POWERWALL |
| Condition | New |

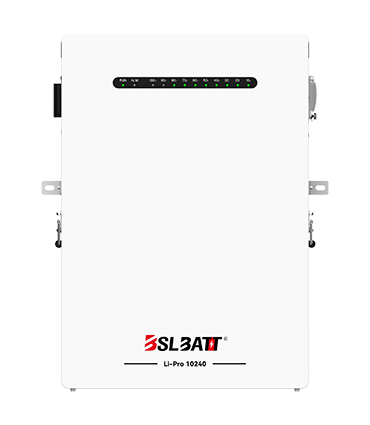

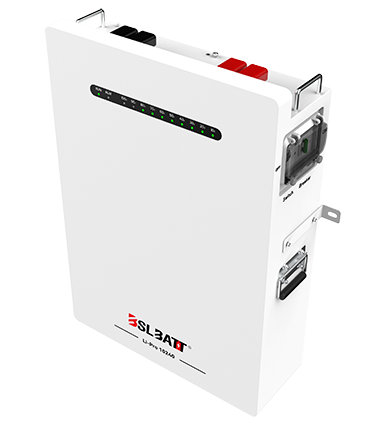

The BSLBATT B-LFP48-200PW is a 51.2V 200Ah LiFePO4 wall-mounted battery for compatible 48V-class solar, off-grid and backup power systems. Its 10.24kWh storage capacity provides substantial energy storage in a slim wall-mounted enclosure.
Model version: This listing is for the 2024 version shown in the product image. Specifications below follow BSLBATT's 2024 datasheet.
Key Features
- Solar and backup storage: 10.24kWh nominal energy, with 9.216kWh usable at the specified 90% depth of discharge.

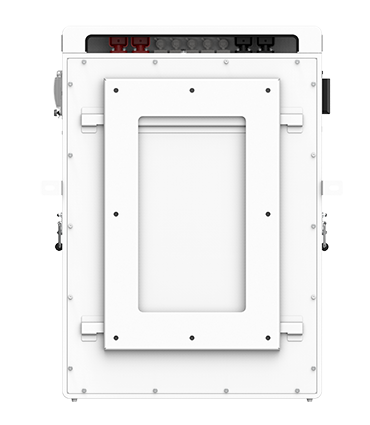

- Wall-mounted design: Saves floor space in a suitable indoor installation.
- Battery management: Integrated BMS with CAN, RS485 and RS232 communication.
- Expandable storage: Supports up to 32 matching batteries in parallel, subject to system design.
- Victron integration: Compatible with supported 48V Victron systems using a GX device and the correct CAN-bus connection and settings.
- Included accessories: Wall-mounting bracket and Victron CAN-bus communication cable.
Technical Specifications
| Model | B-LFP48-200PW (2024 version) |
|---|---|
| Chemistry | LiFePO4 (lithium iron phosphate) |
| Nominal voltage / capacity | 51.2V / 200Ah |
| Nominal / usable energy | 10.24kWh / 9.216kWh |
| Depth of discharge | 90% |
| Cell configuration | 16S2P |
| Charge / discharge voltage | 55V / 47V (datasheet values) |
| Rated charging | 100A / 5.12kW |
| Maximum charging | 160A / 8.192kW |
| Rated discharge | 200A / 10.24kW |
| Maximum discharge | 220A / 11.264kW for 1 second |
| Peak discharge | 250A / 12.8kW for 1 second |
| Dimensions | 820 × 490 × 147mm |
| Weight | 95kg |
| Protection | IP20 |
| Communication | CAN, RS485, RS232 |
| Wireless monitoring | Wi-Fi and Bluetooth optional |
| Parallel expansion | Up to 32 units |
| Charging temperature | 0°C to 55°C |
| Discharging temperature | -20°C to 55°C |
| Storage temperature | 0°C to 35°C |
| Cooling | Natural cooling |
| Cycle life | More than 6,000 cycles at 25°C |
| Manufacturer's warranty | 10 years, subject to warranty terms |
Discharge figures describe the battery's DC output. Available AC power also depends on the inverter and complete system design; the one-second peak rating is not a continuous output rating.
Victron & Inverter Compatibility
The B-LFP48-200PW is listed in Victron's BSLBATT integration documentation. A suitable GX device, such as the Cerbo GX, provides the CAN-bus connection for battery status, charge limits and discharge limits. Supported 48V MultiPlus, MultiPlus-II and Quattro systems require the appropriate firmware, configuration and battery sizing.
For other inverter brands, confirm the exact inverter model and battery communication protocol with our team before ordering.
What's Included
- 1 × BSLBATT B-LFP48-200PW 2024-version battery
- Wall-mounting bracket
- Victron CAN-bus communication cable
Wi-Fi and Bluetooth are optional features in the 2024 specification and are not advertised as standard inclusions.
Installation & Local Support
This 95kg, IP20 battery requires a suitable dry indoor location and a mounting structure capable of supporting its weight. Installation and commissioning should be completed by a qualified installer using the documentation for this battery version.
Our Perth team can help with inverter matching, system planning and collection or freight arrangements. Contact Access 12 Volt Warehouse for help choosing your battery system.
Product Documents
Download the BSLBATT B-LFP48-200PW 2024 datasheet (PDF)
Read Victron's BSLBATT integration guide
