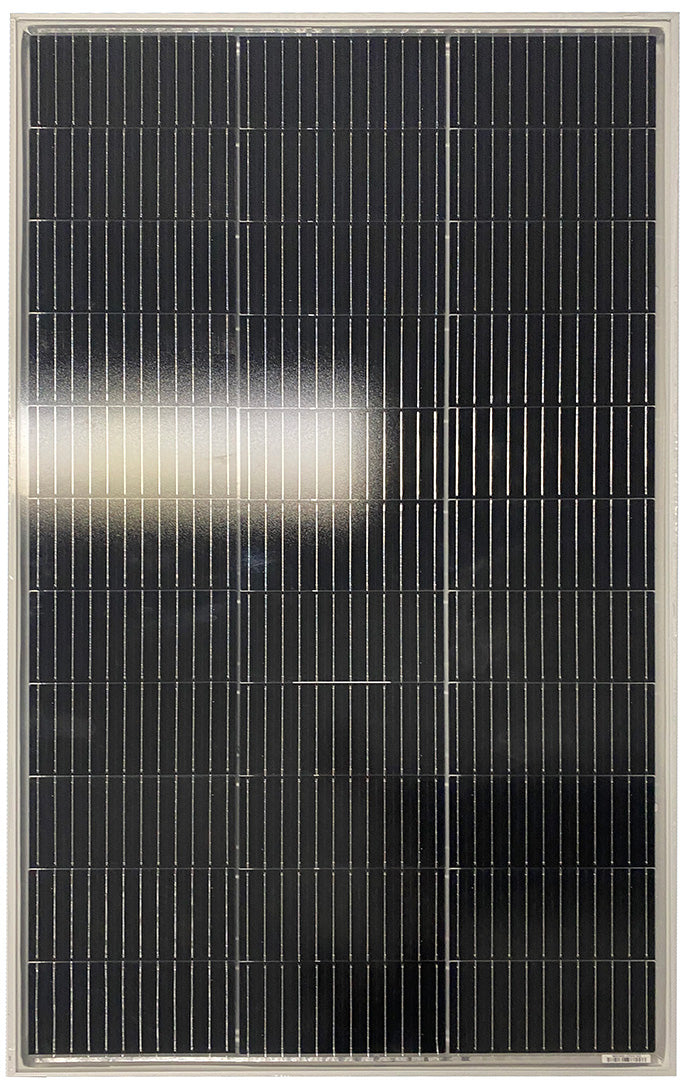

ATG 305W Fixed Bi-Facial Mono Solar Panel

ATG 305W Fixed Bi-Facial Mono Solar Panel

Regular price $242.00
Regular price Sale price $242.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
  • Maximum Power (Pmax): 305 W
  • Solar Cells: Mono Grade A
  • Max Power Voltage (Vmp): 34.74 V
  • Max Power Current (Imp): 8.78 A
  • Open Circuit Voltage (Voc): 41.69 V
  • Short Circuit Current (Isc): 9.31 A
  • Power Tolerance: 0–3%
  • Max System Voltage: 1000 V
  • Series Fuse Rating: 20 A
  • Operating Temperature: –40℃ to 80℃
  • STC Conditions: Irradiance 1000 W/㎡, Module Temperature 25℃, AM=1.5
  • Dimensions: 4640 × 992 × 35 mm
  • Net Weight: 17.5 kg
  • Cable: LAPP (4 ㎡)
  • Cable Length: 900 mm
  • Connector: MC4 Plug Type
  • Glass Type: High-transmittance, Low Iron, 3.2 mm Tempered Glass
  • Frame: Aluminium Alloy
